This locomotive was purchased new in October, 1927 by the New Haven Railroad for lease to its subsidiary, the Wood River Branch Railroad of southern Rhode Island, USA.  It was manufactured by the Fate-Root-Heath Co.'s Plymouth Locomotive Works of Plymouth, Ohio, USA.  The New Haven originally numbered it "A100".  The Wood River Branch later re-numbered it "1872", to honor the year of its inception.  The Wood River Branch Railroad ran from Wood River Junction, 5.6 miles north to Hope Valley, both in Rhode Island.

Model HL Type 2 Sales Brochure

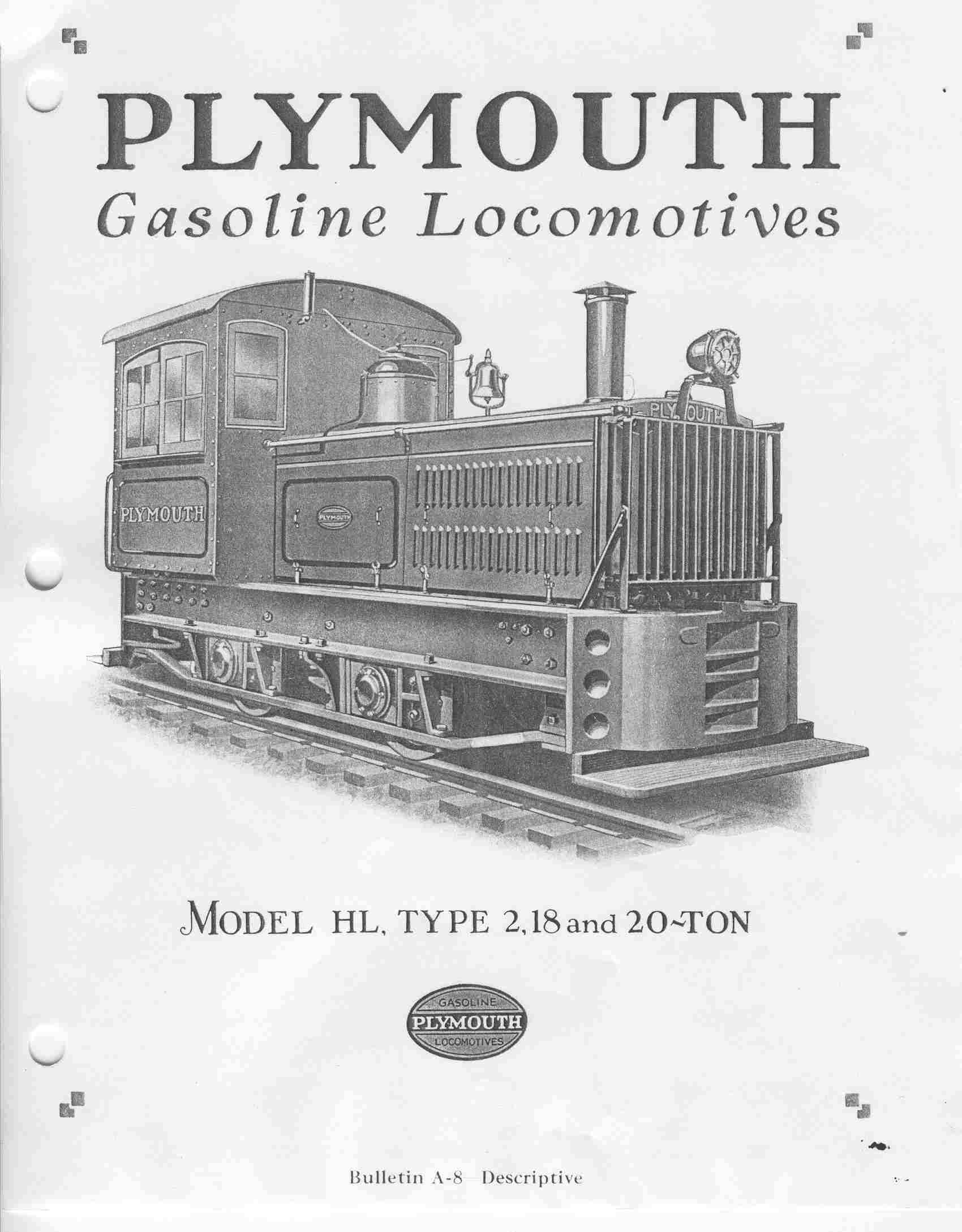

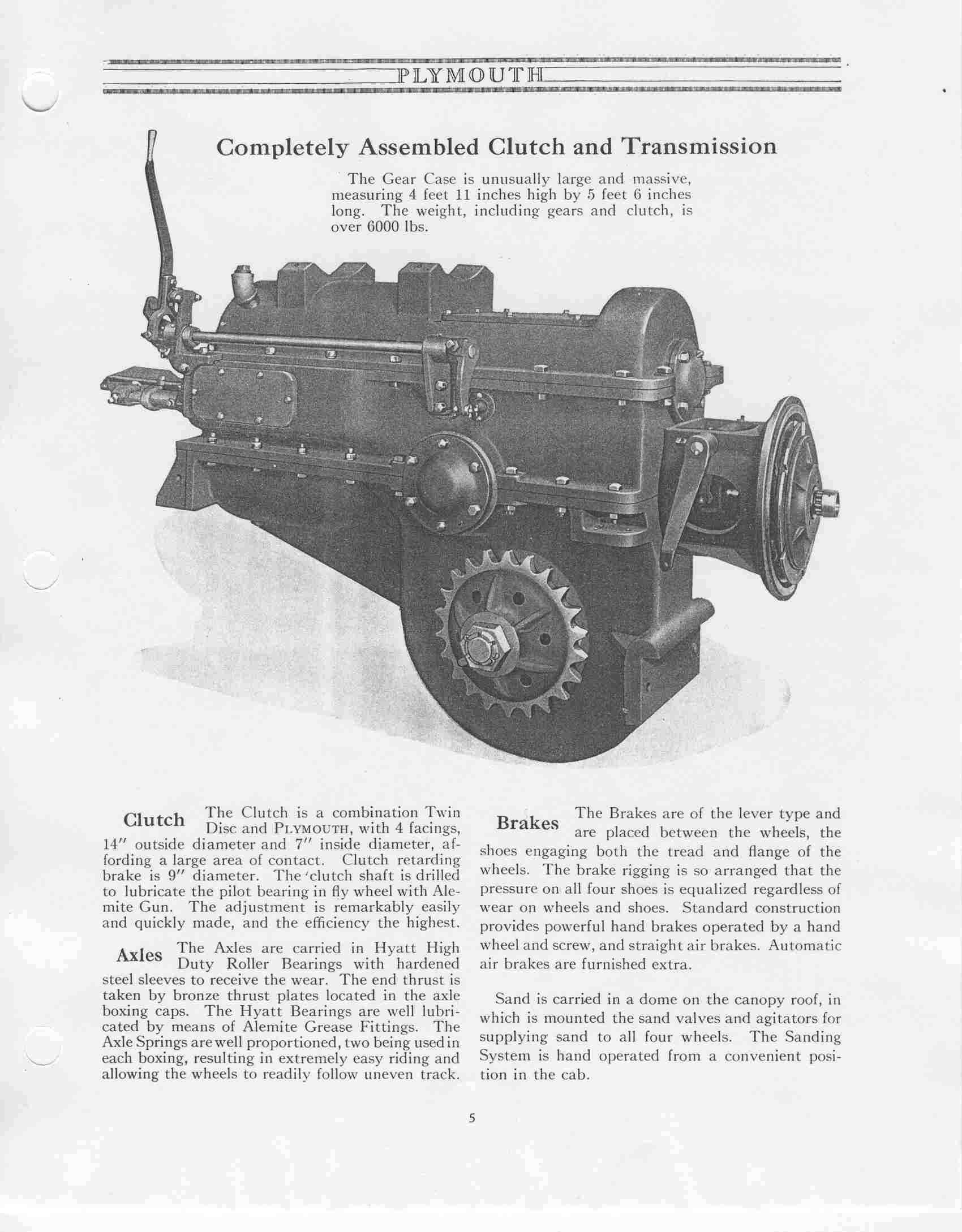

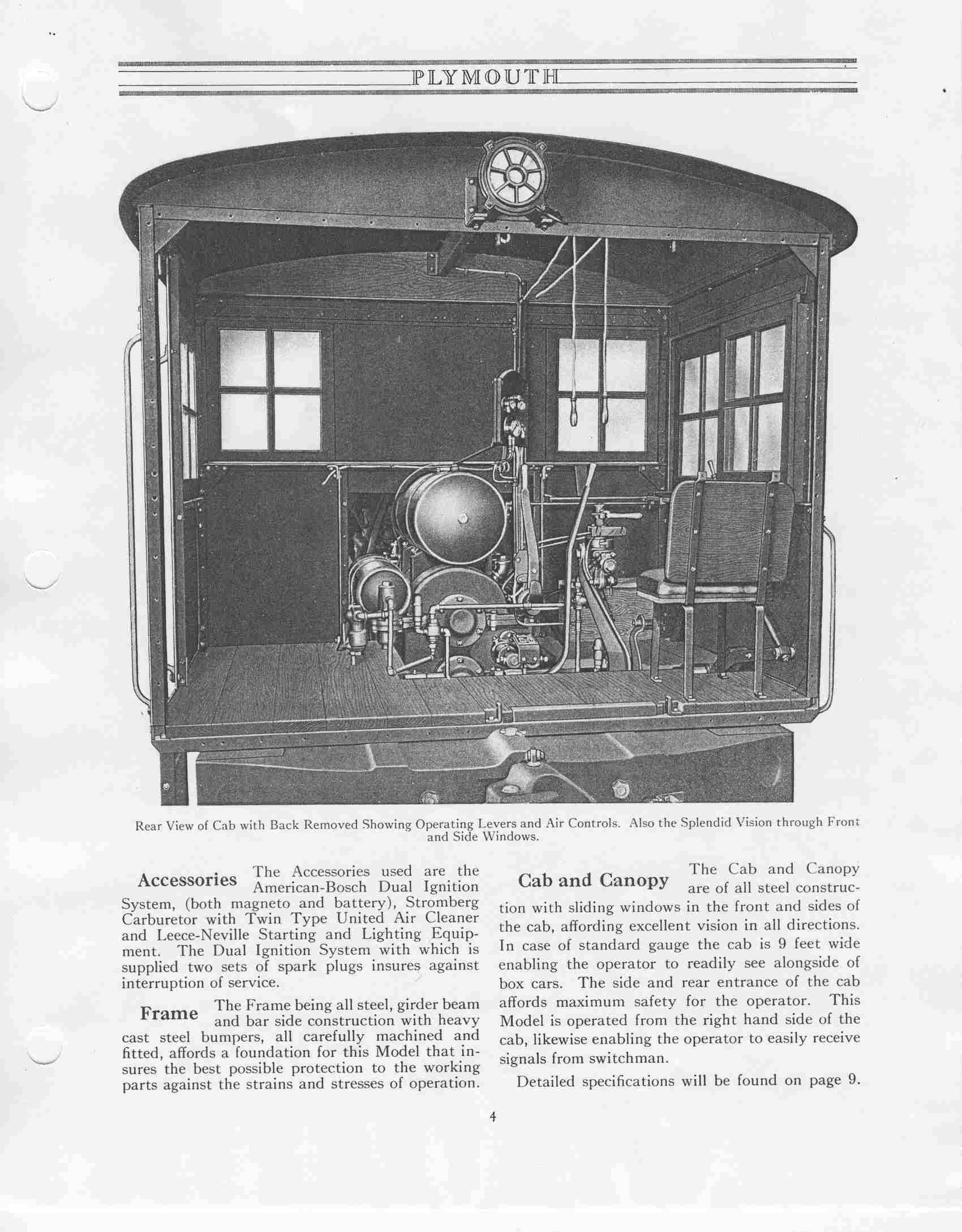

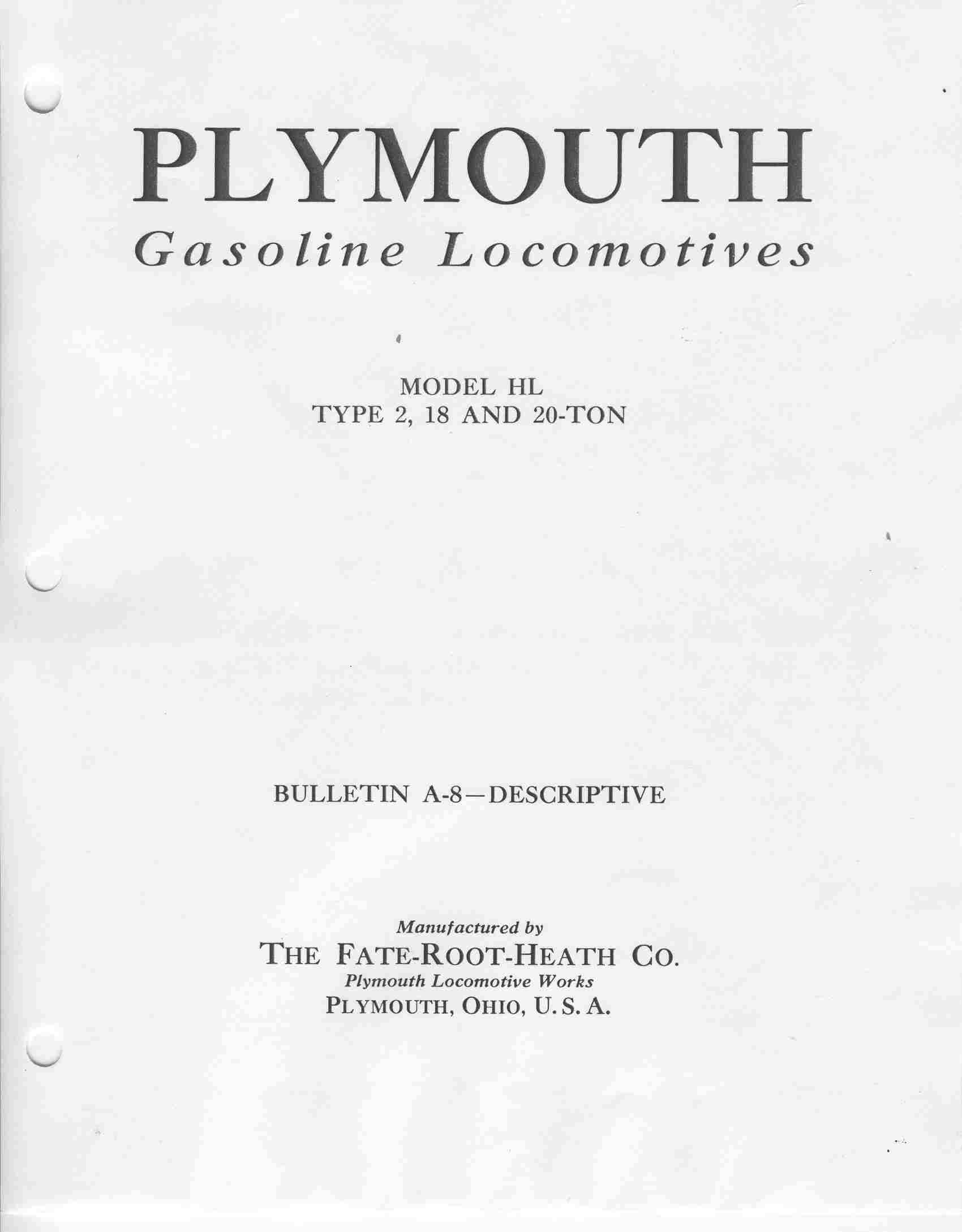

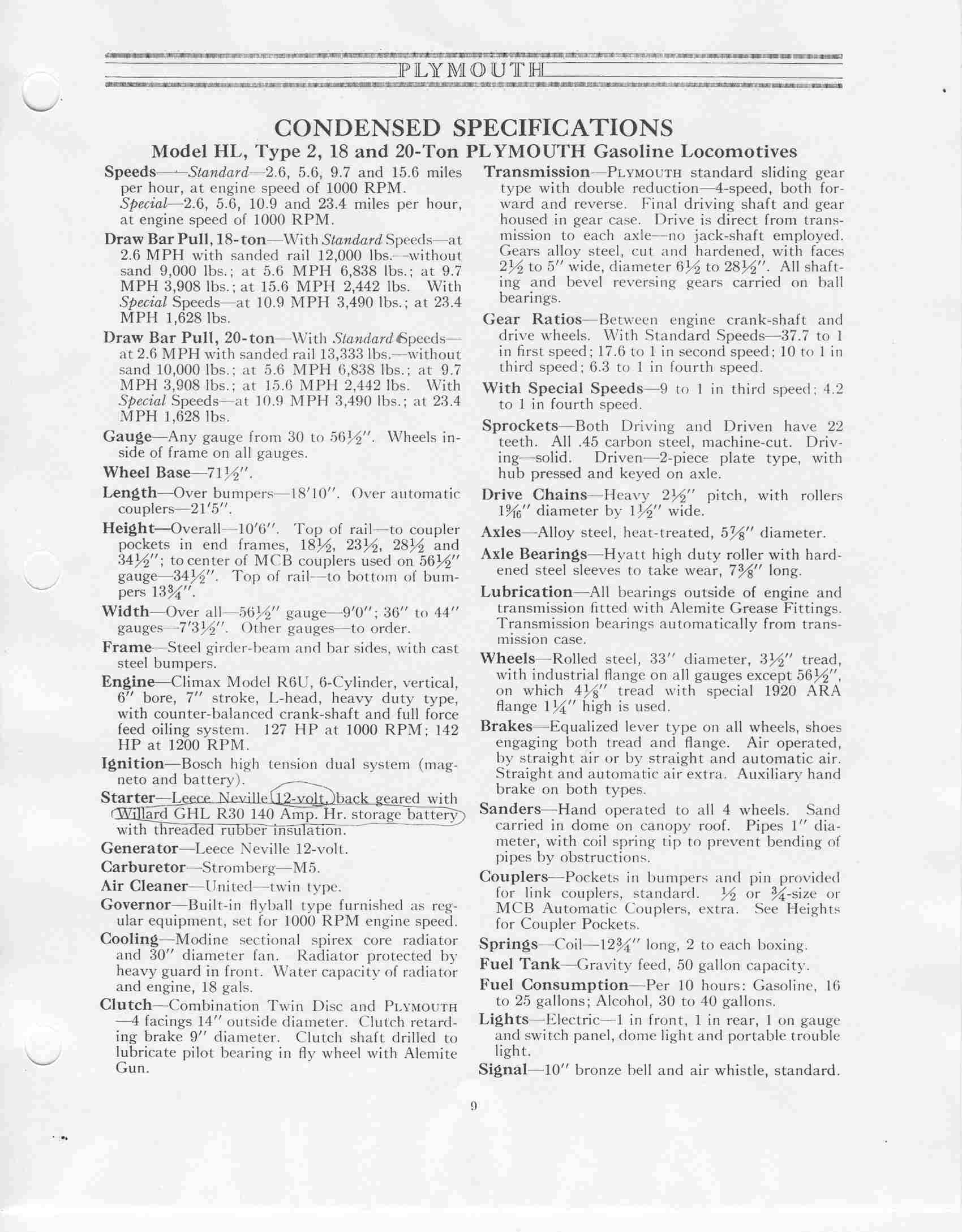

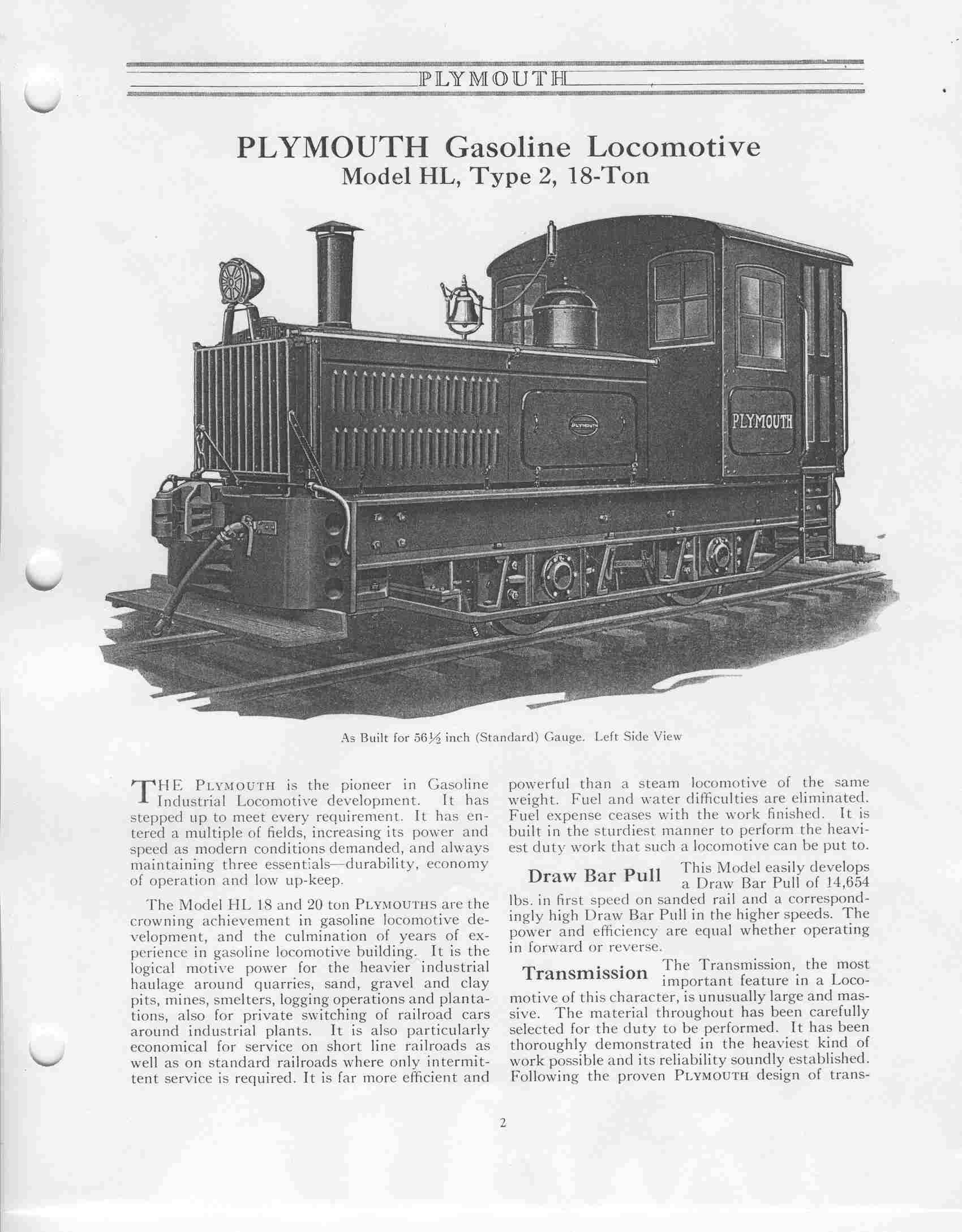

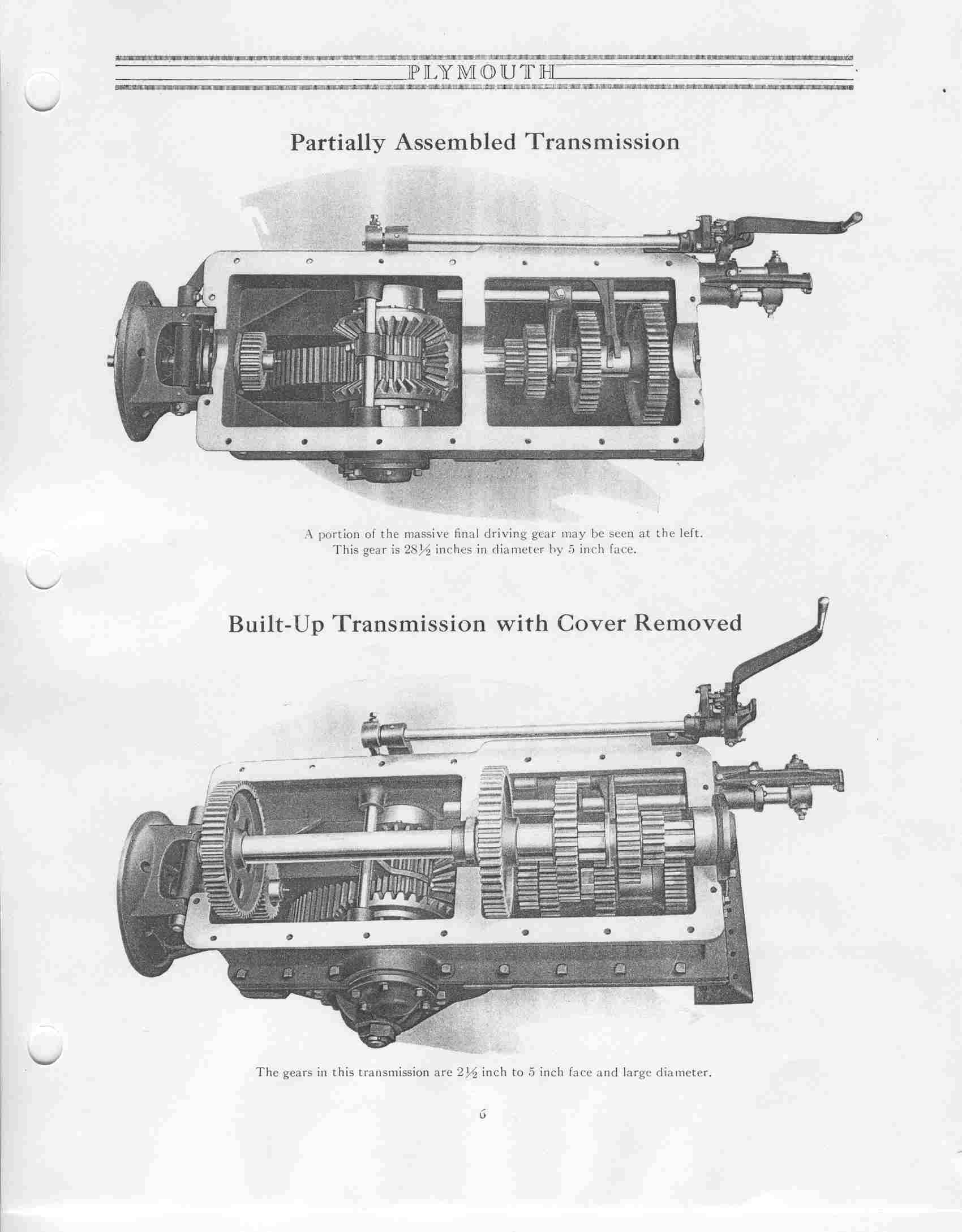

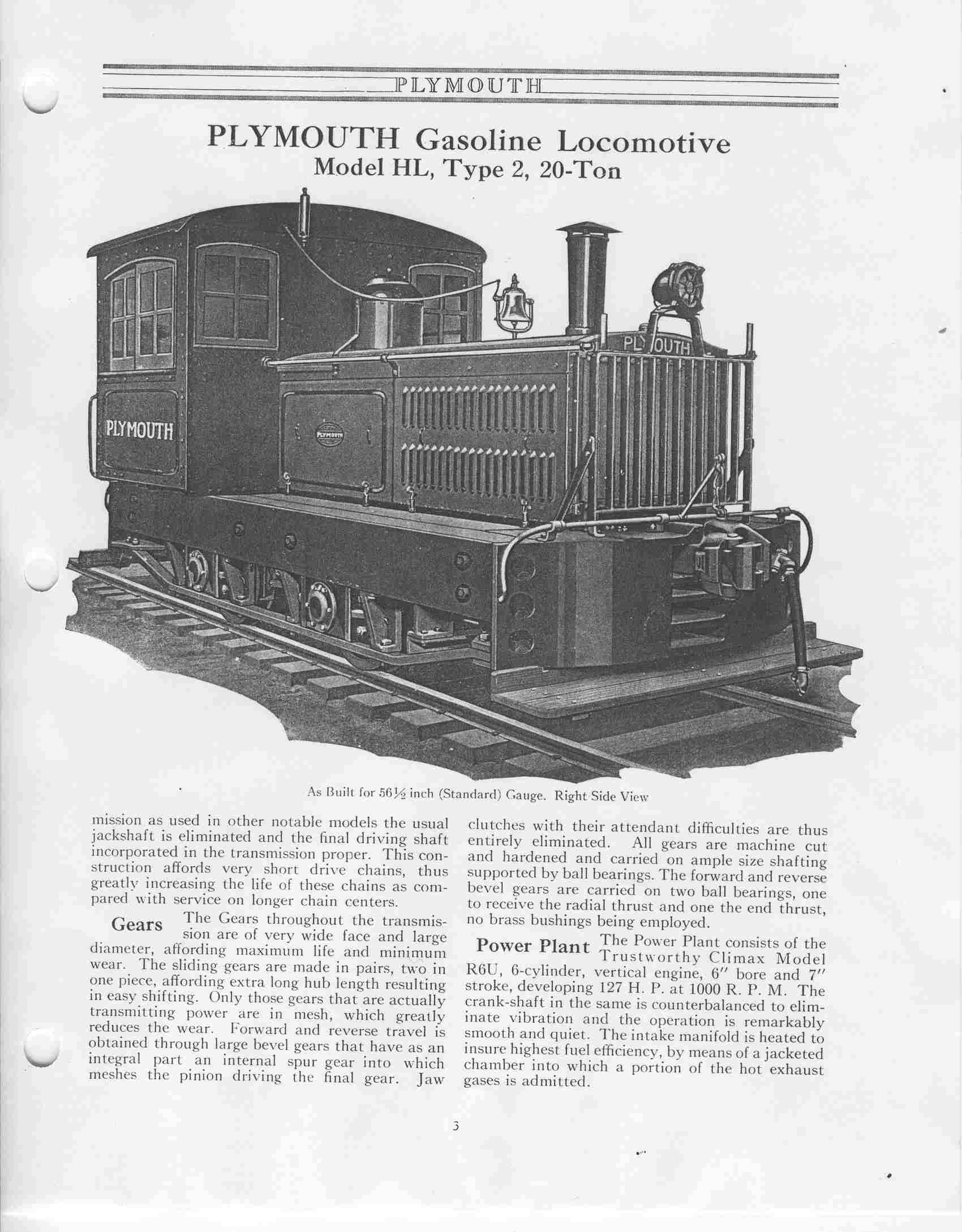

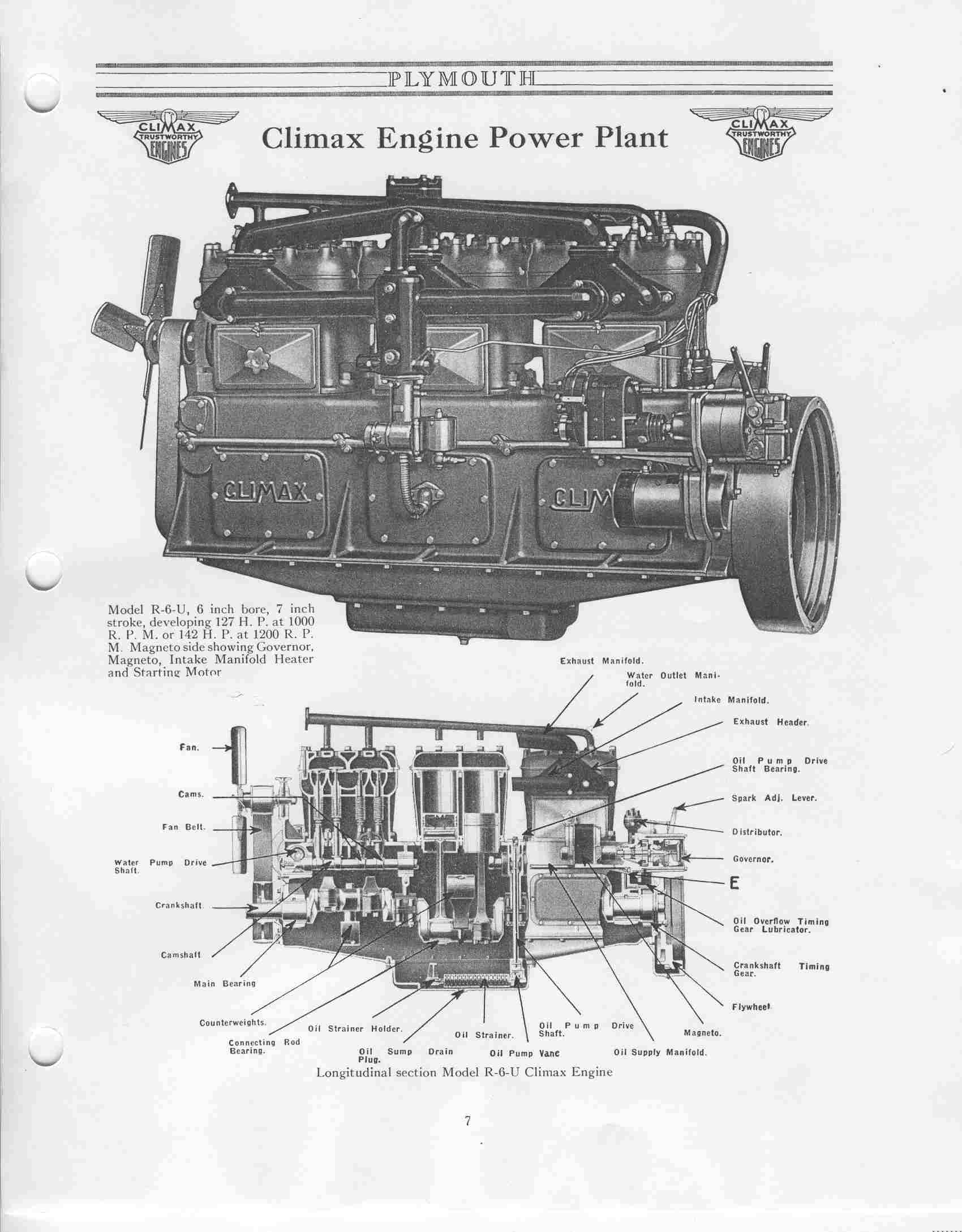

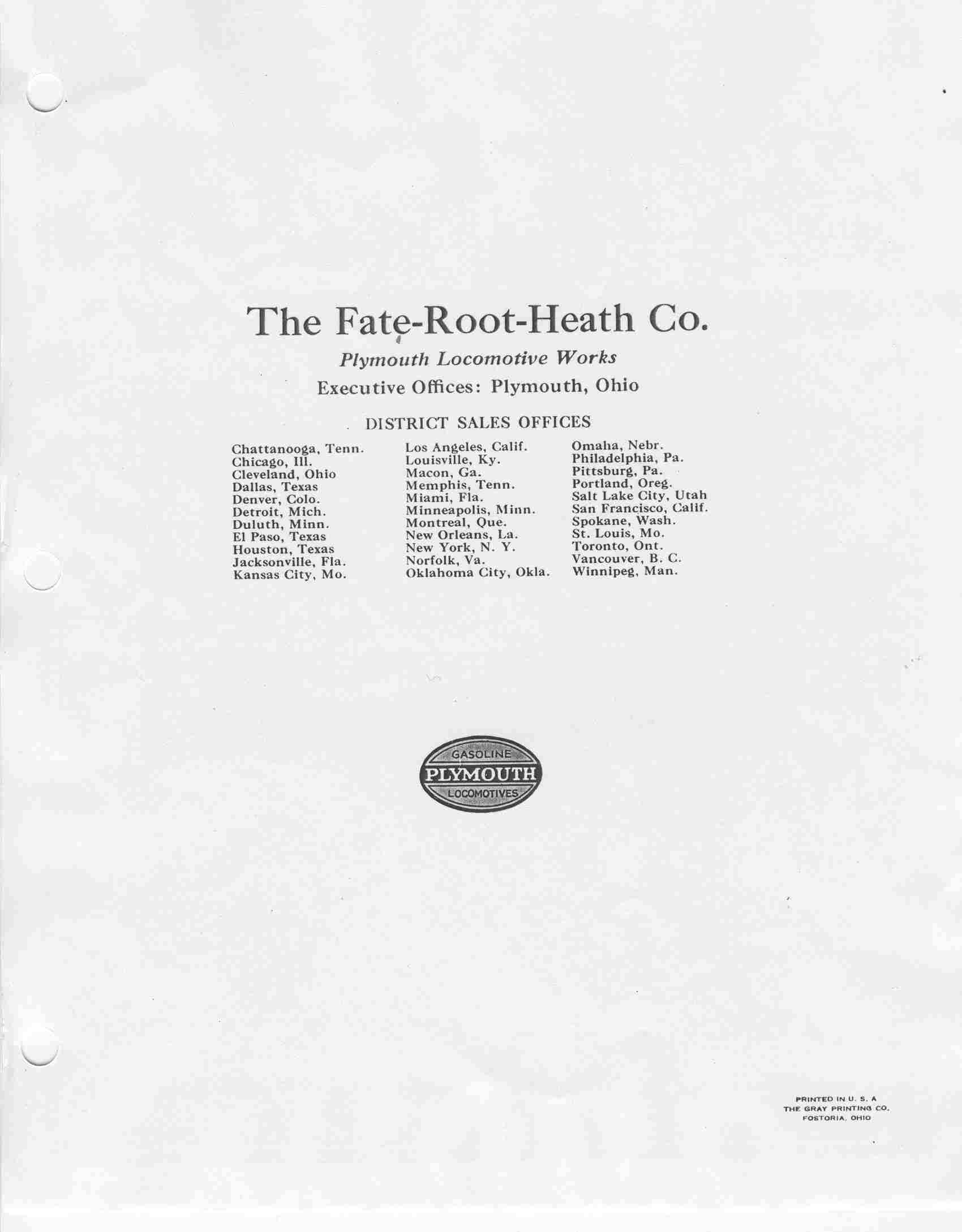

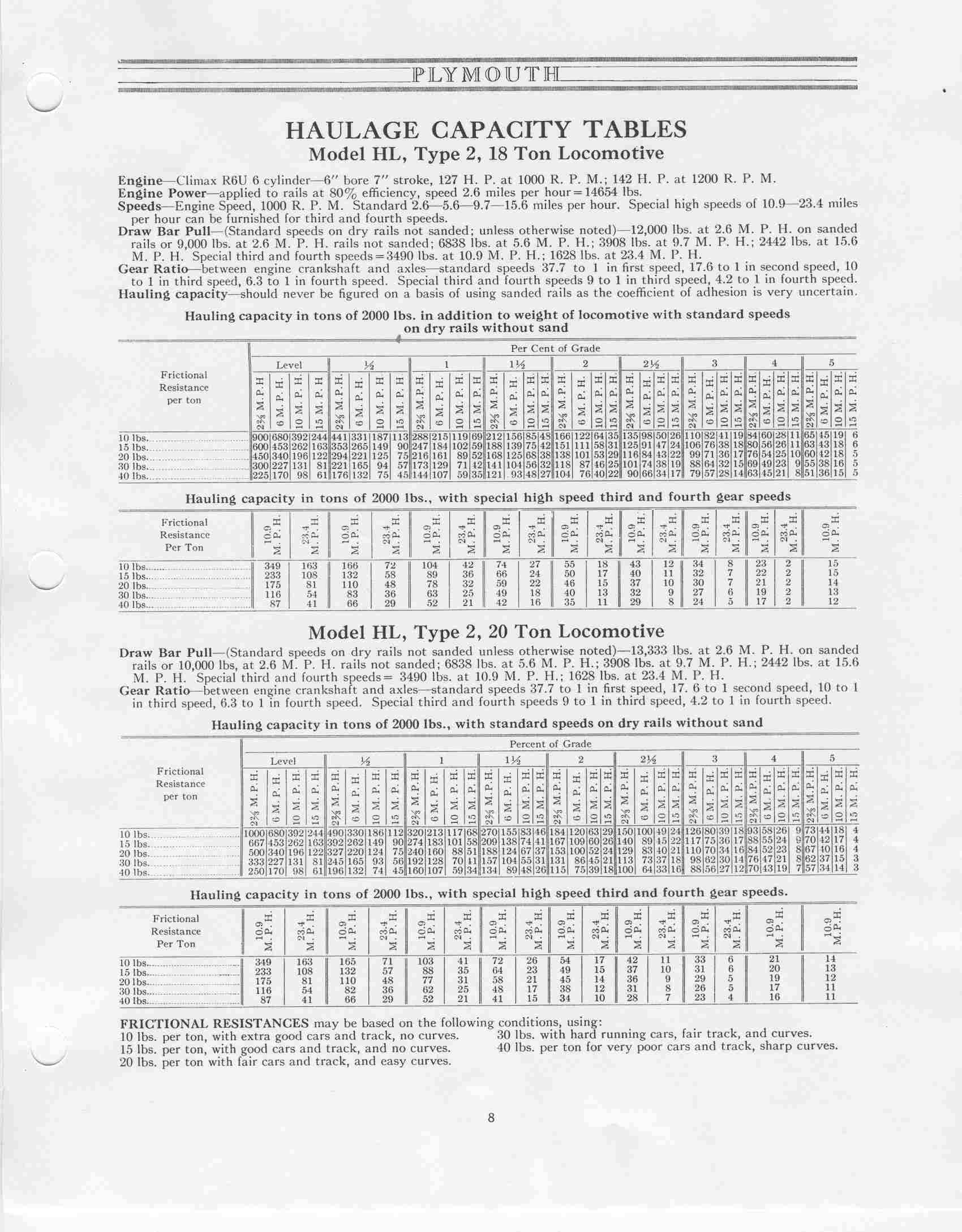

Below is reproduced a 1920's sales brochure for this model.  The original brochure is a glossy color (the locomotive on the cover is yellow, just like s/n #2691) tabloid style and is kept at the Historical Archives at the Langworthy Library of Hope Valley, Rhode Island:  http://www.langworthylibrary.org/  .  You know the drill, click on the thumbnail to see the larger image.

			Thanks to the Langworthy  Library and W.W.Williams  Distribution: http://www.williams distribution.com/ distribution/plymouth Locomotive.jsp

Assembly Drawing
&
Bill of Materials

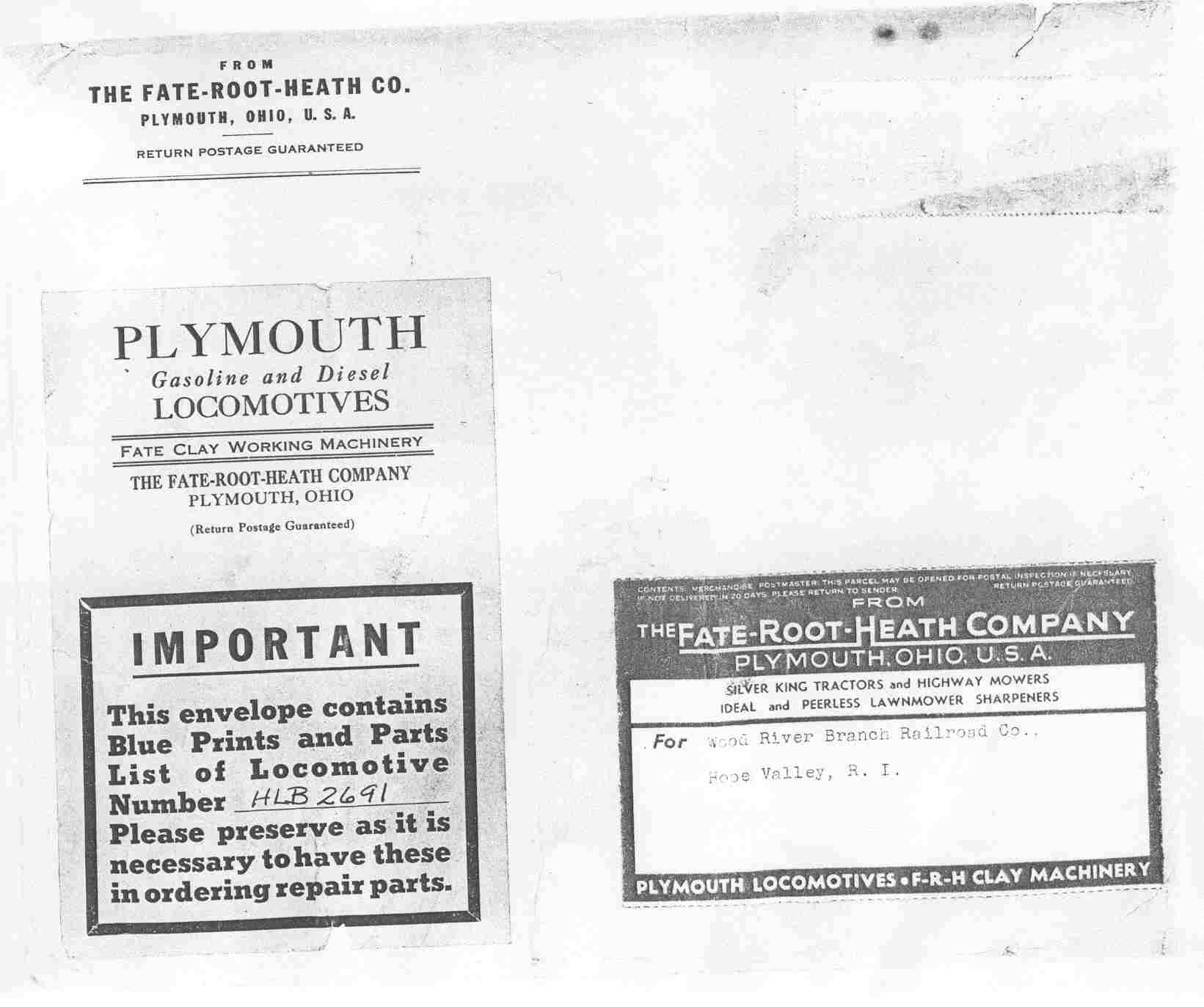

Apparently, in 1943, the Wood River Branch requested and received information from Fate-Root-Heath Co. about their locomotive.  On file at the Historical Archives are the original mailing envelope...

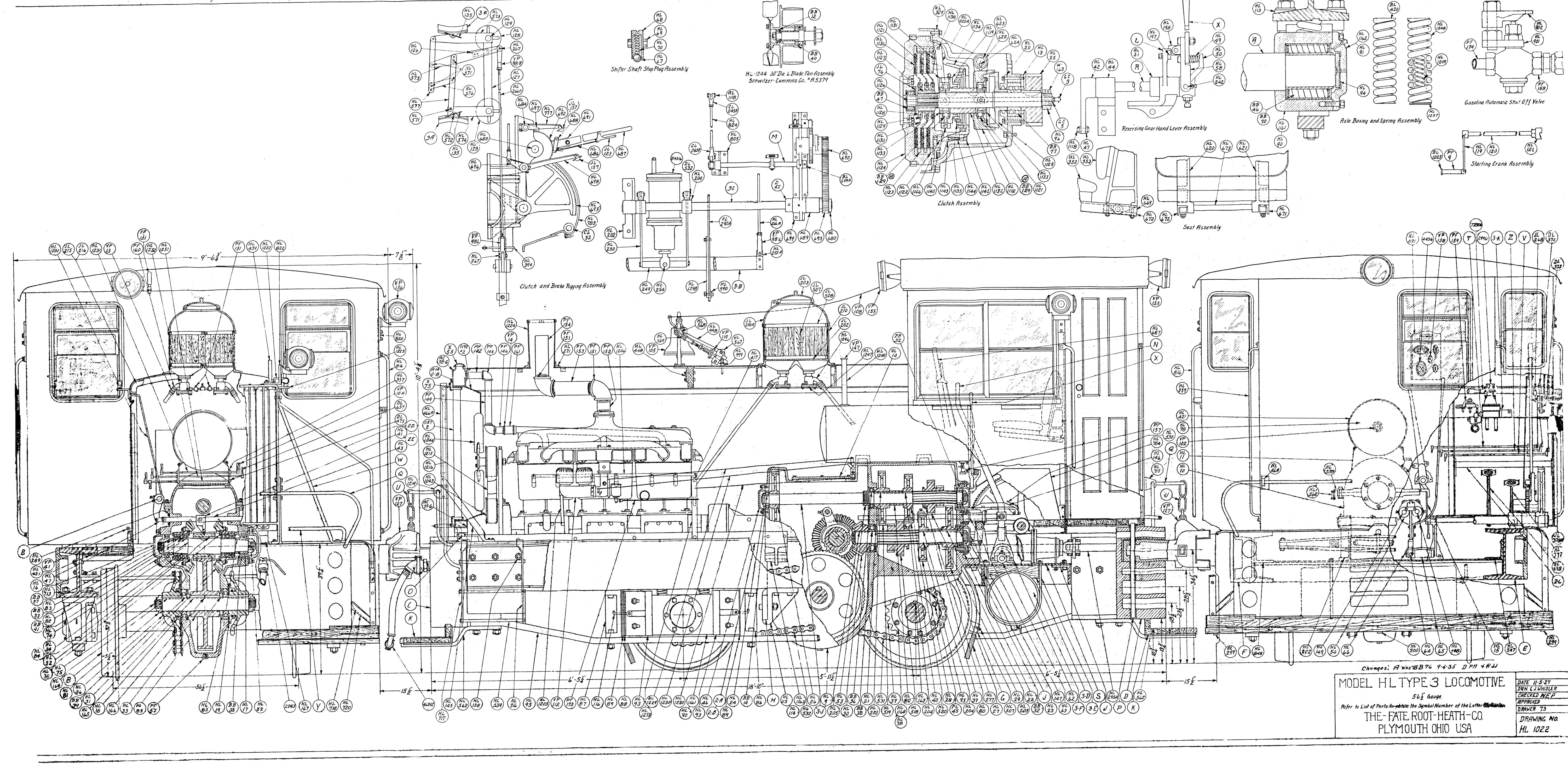

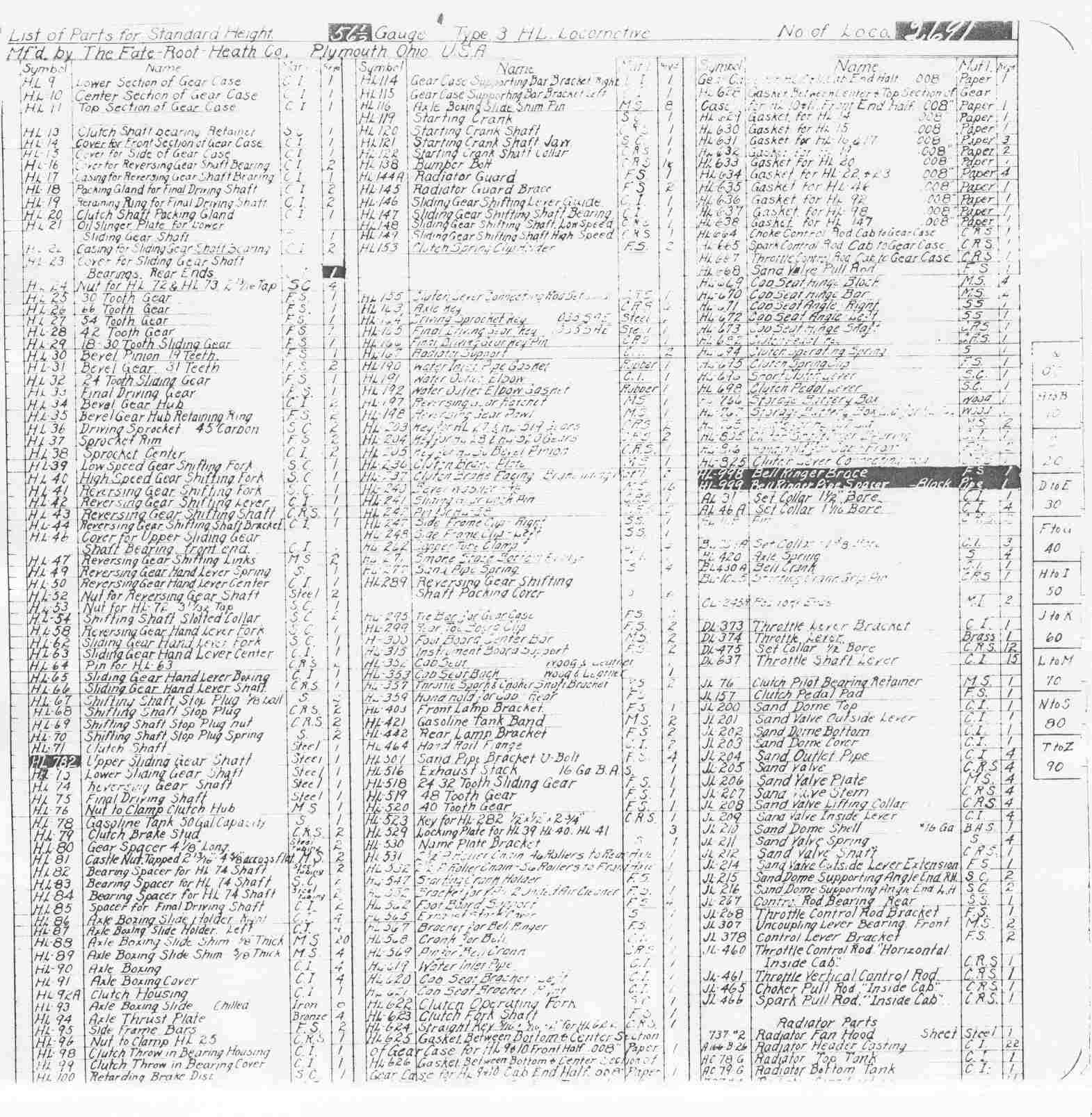

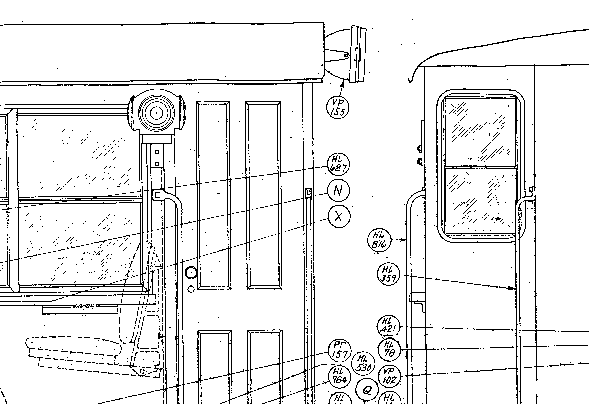

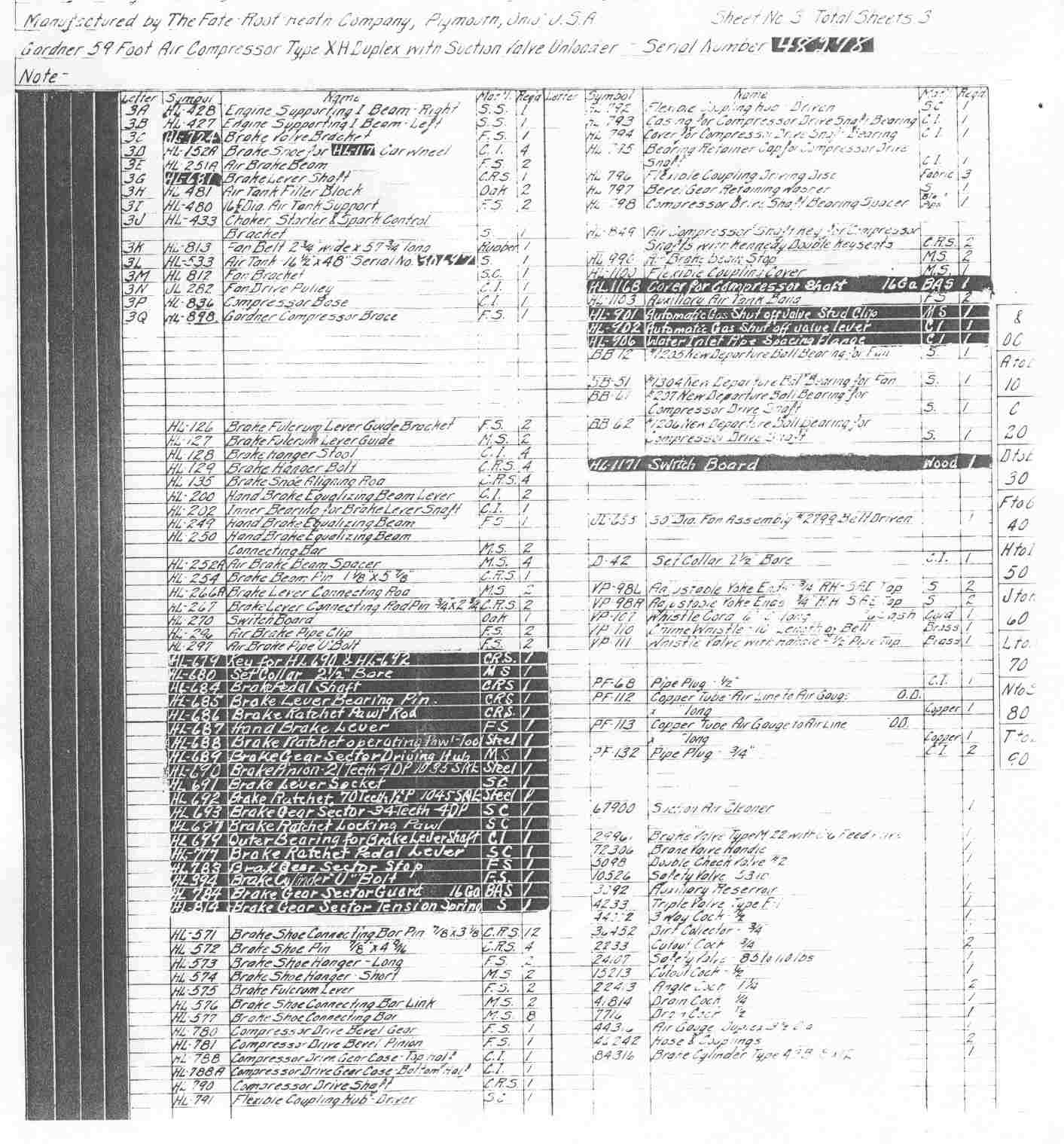

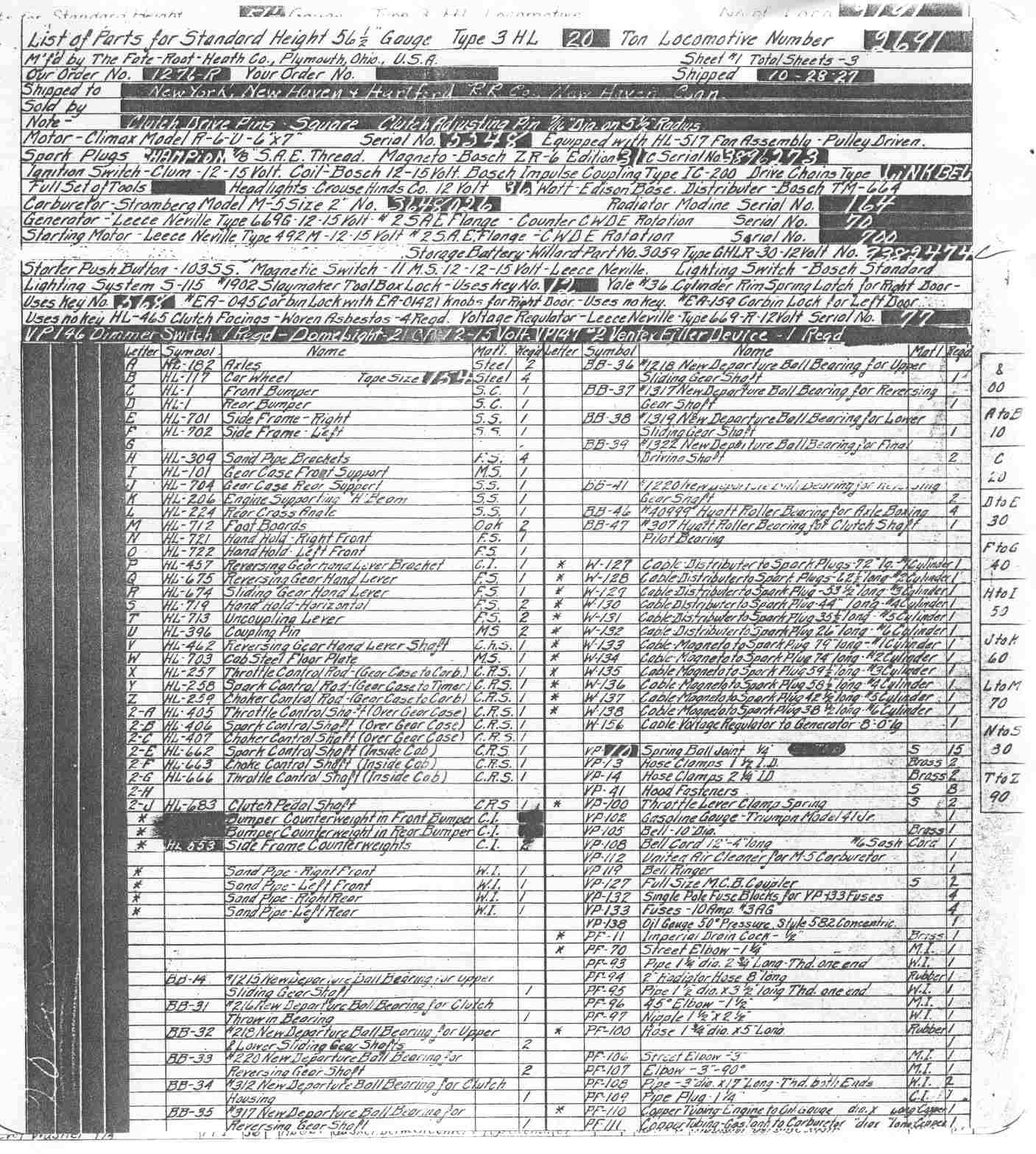

                       ...as well as a "Bill of Materials", or repair parts list.  Here are the three hand-written pages:  Page 1 of 3 , Page 2 of 3, and Page 3 of 3.  As for the assembly drawing, it is a "D" size (24" x 36") blue line.  To see the assembly drawing, click the thumb below.

CAUTION:  3 Mb file!

Photos of #2691

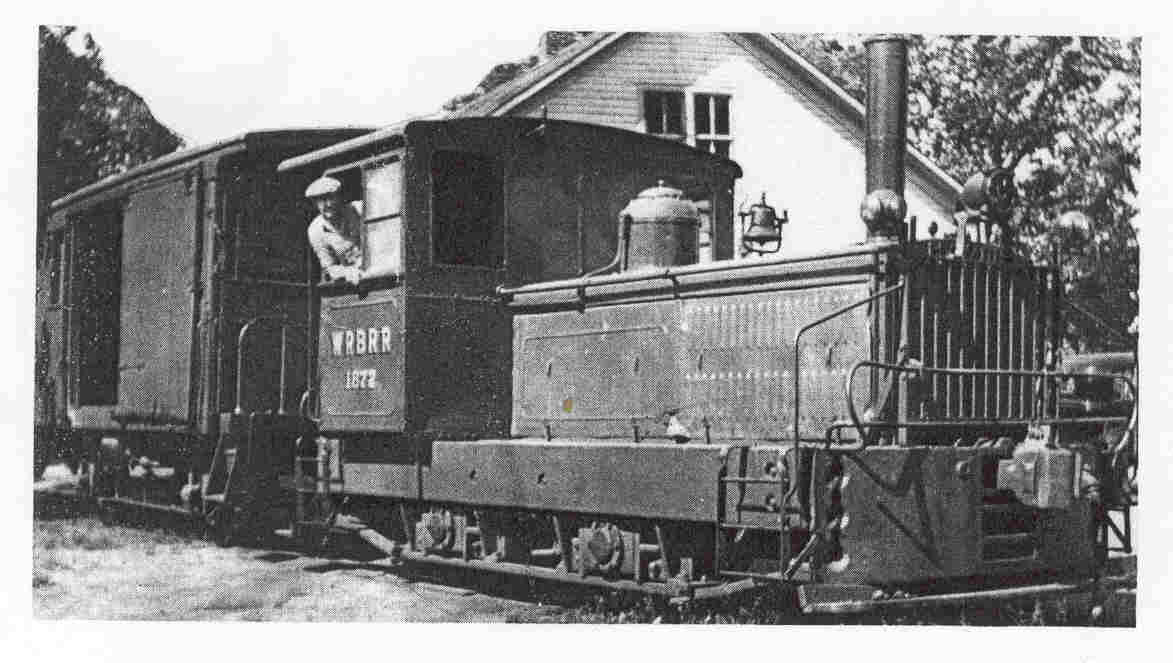

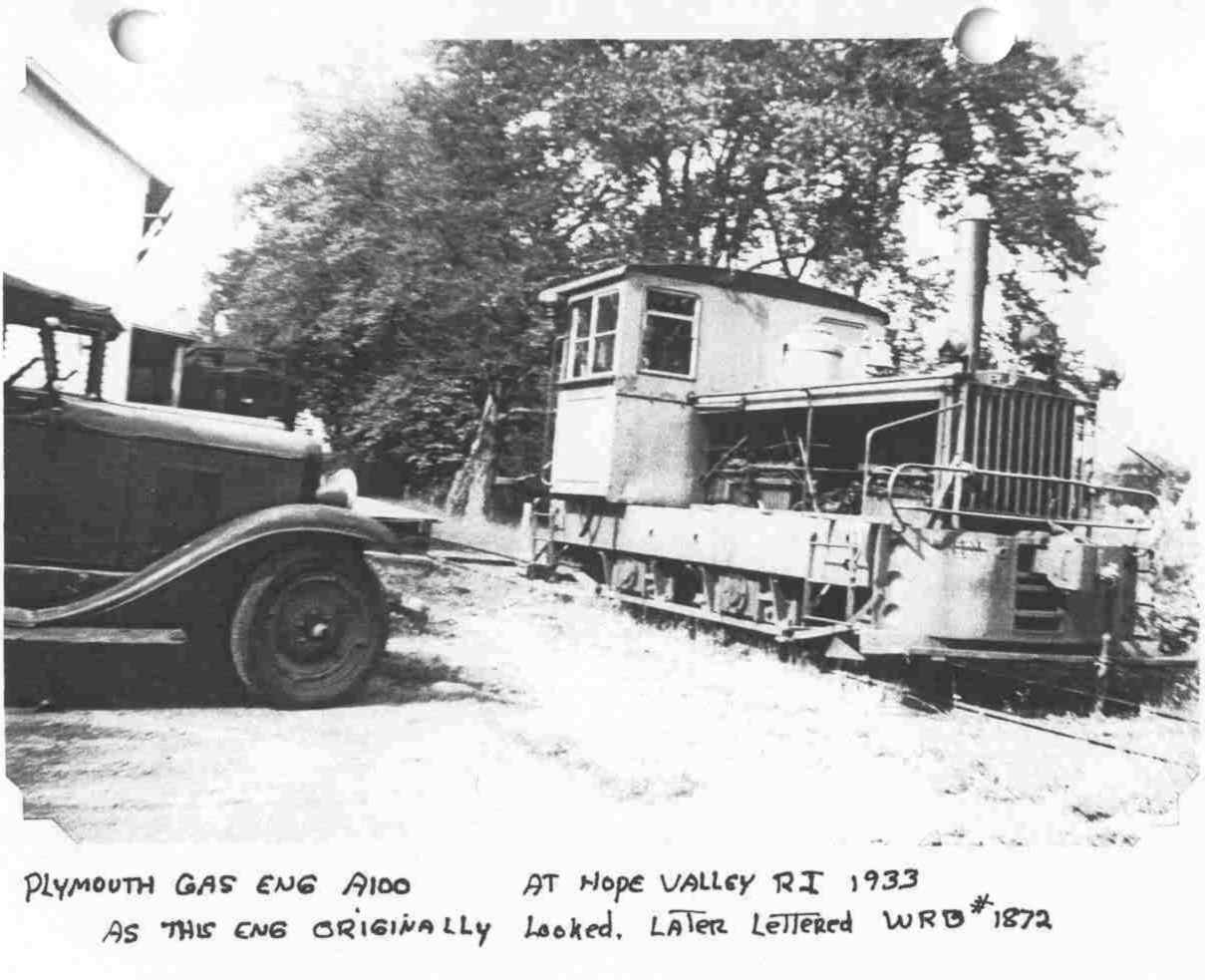

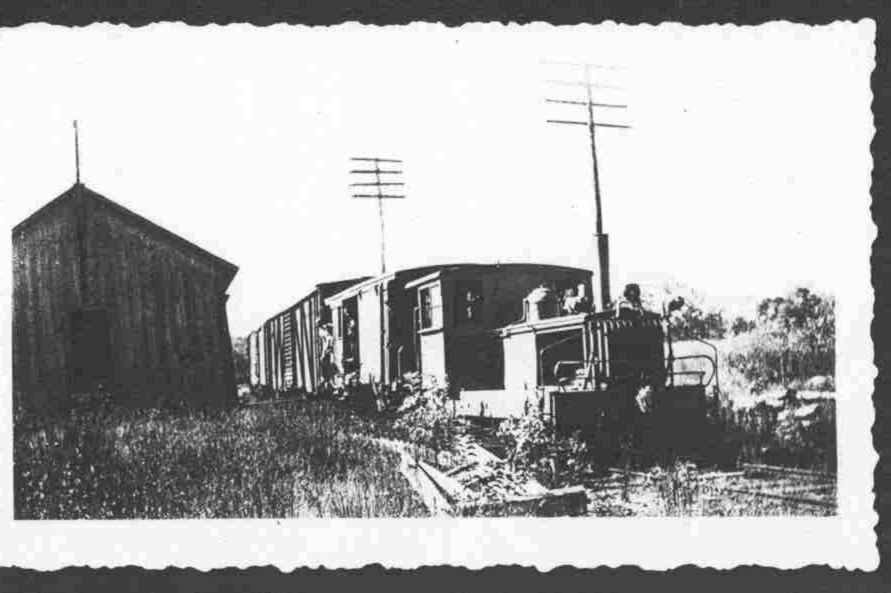

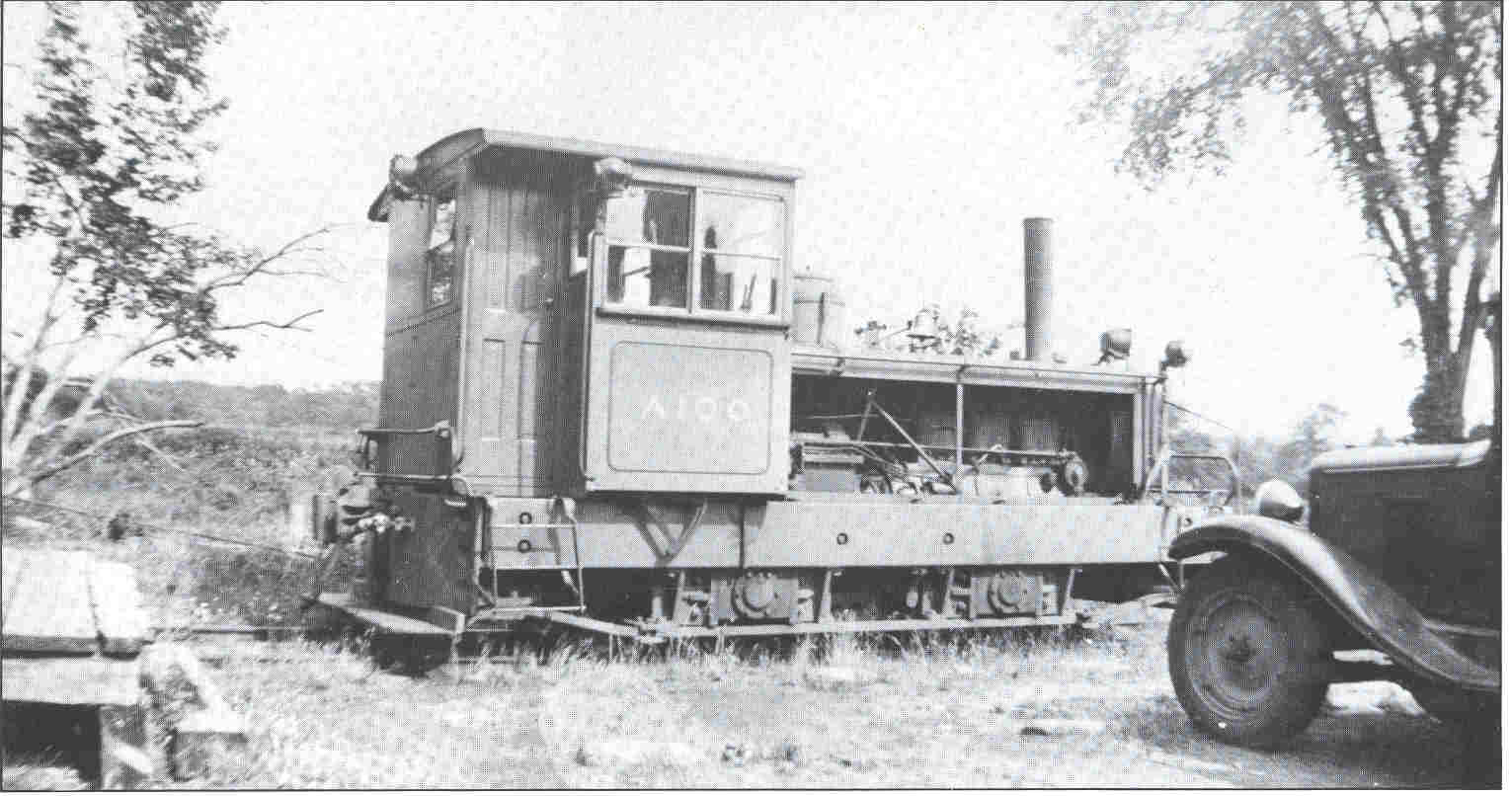

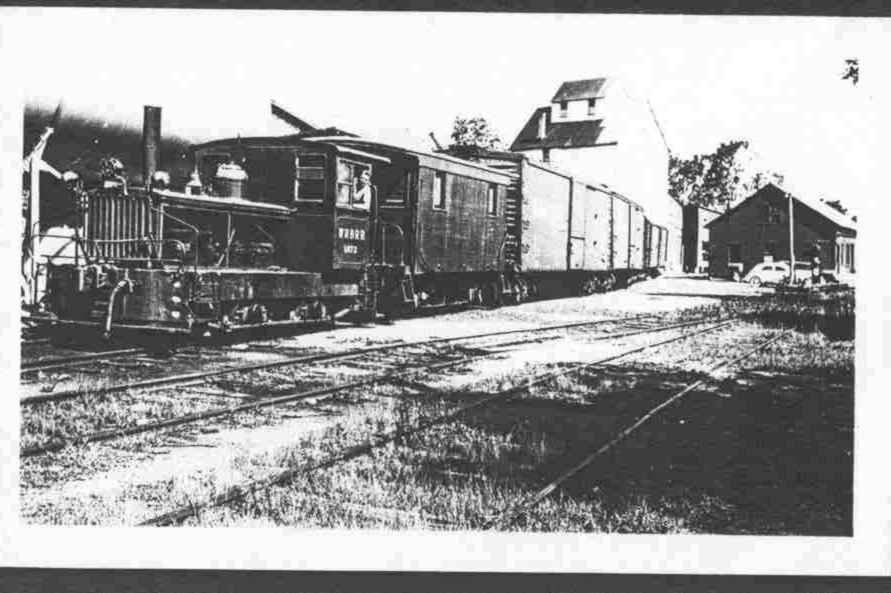

Here are some photos of Plymouth #2691, all in operation on the Wood River Branch Railroad.

Walker	Walker	Walker
Langworthy	Walker	Langworthy
Langworthy	Langworthy	Langworthy
	Langworthy

Thanks for the pictures to:

Walker:  Walker Transportation Collection, Beverly Massachusettes Historical Society

http://www.walkertrans.org/

Langworthy:  Langworthy Public Library Historical Archives

http://www.langworthylibrary.org/archive.html


HO Scale Model

The HO model project now has its own page.  Click on the thumb to get there.
